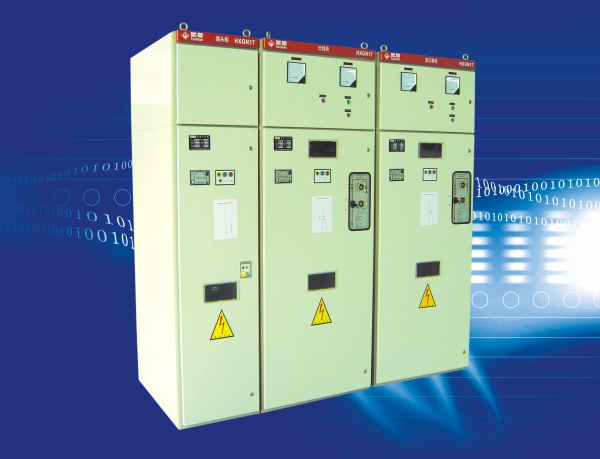

HXGN□-12F箱型固定式金属封闭开关设备（环网柜）
HXGN□-12F Chest-type, Fixed Metal-enclosed Switchgear (Circulating Network Switchgear)
性能与用途
HXGN□-12F型高压负荷开关柜采用意大利VEI产品ISARC压气式开关，性能优越，具有可靠防误操作措施，体积小，重量轻，操作简单，操作力小，使用安全，维护方便，质量稳定可靠，占地面积小，可靠墙安装等特点。
适用于工厂、车间、住宅小区、高层建筑、学校和公园等场所的配电系统，可用作环网供电和终端供电之用。
配备40多种一次线路方案可供选择和组合。
Functions and Applications
HXGN□-12F is a high voltage load switch switchgear equipped with ISARC pressure switch, a VEI product of Italy.It is
reliably protected against operating errors and is characterized for its compact design, light weight, easy and operation,
convenient maintenance, stable and reliable quality, space saving, and can be installed against the wall.
It is used in the power distribution systems to be circulating network and terminal power supply in factories, residential
buildings,high buildings, schools and parks, etc.
There are more than 40 primary circuit schemes for selection.
主要技术参数
额定电压（kV）：12
母线额定电流（A）：630
额定热稳定电流（有效值）（kA）：20
熔断器额定开关电流（有效值）（kA）：31.5
外形尺寸（宽×深×高）（mm）：600(400，800) × 900 × 2000（1800）
Primary Technical Data
Rated voltage (kV) : 12
Rated current (A) of busbar : 630
Rated thermal stabilizing current (effective value) (kA) : 20
Rated switching current of fusible cutout (effective value)(kA) : 31.5
Overall dimensions (width depth height) (mm) : 600 (400,800)，900，2000 (1800)
