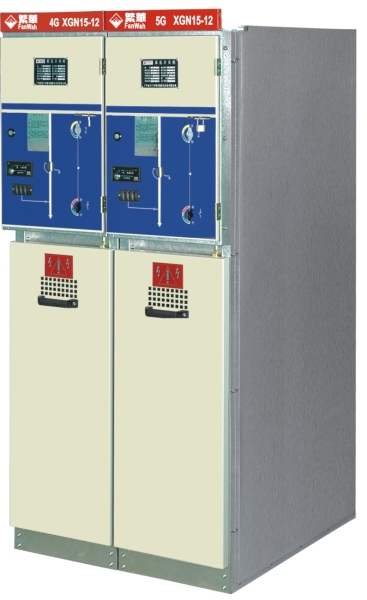

XGN15-12金属封闭SF6开关柜（环网柜）
XGN15-12 Metal- enclosed SF6 Switchgear (Circulating Network Switchgear)
性能与用途
1. XGN15-12型单元式六氟化硫环网柜采用三工位FLN36-12D型和FLRN36-12D型SF6负荷开关，具有体积小、重量轻、外形美观、操作简便、安全可靠、长寿命、高参数、无污染、免维护等特点。
2. 满足IEC60298，GB3906标准。
3. 具有“五防”功能，具有可靠的机械联锁和防误操作功能。
4. 适用于交流50Hz，12kV的电力网络中，作为环网供电和终端供电设备使用。
5. 自然闭锁三工位（接地、分闸、合闸位置）
Functions and Applications
1. XGN15-12 is a unit type sulfur hexafluoride circulating network switchgear. The switchgear employs
FLN36-12D and FLRN36-12D three-working-position SF6 load switch. It is characterized by its compact-design, light weight; nice-looking appearance, easy operation, safe and reliable, long service life, high
performance data, free of pollution and less maintenance.
2. IEC60298 and GB3906 standards compliant.
3. With “Five -prevention” functions, reliable mechanical interlock and the operation errors averting
functions.
4. It is used in electric network (AC, 50Hz, 12kV) to be circulating network and terminal power supply.
5. Latches automatically in three positions (earthing, disconnecting and closing).
主要技术参数
额定电压（kV）：12
额定频率：50Hz
母线额定电流（A）：630
3秒额定热稳定电流（有效值）：20 kA
额定峰值耐受电流：50 kA
熔断器额定开断电流（有效值）:31.5 kA
工频耐受电压（kV/1min）：42/48
防护等级：IP3X
外形尺寸（宽×深×高）(mm ):500(750)×860×1600（1800）
Primary Technical Data
Rated voltage (kV）:12
Rated frequency: 50Hz
Rated busbar current (A): 630
Rated thermal stabilizing current (3s, effective value): 20kA
Rated peak withstand current: 50kA
Rated on-off current (effective value) of fusible cutout: 31.5 kA
Power frequency withstand voltage(kV/1min):42/48
Protection level: IP3X
Overall dimensions (width, depth, height) (mm): 500(750),860,1600(1800)
