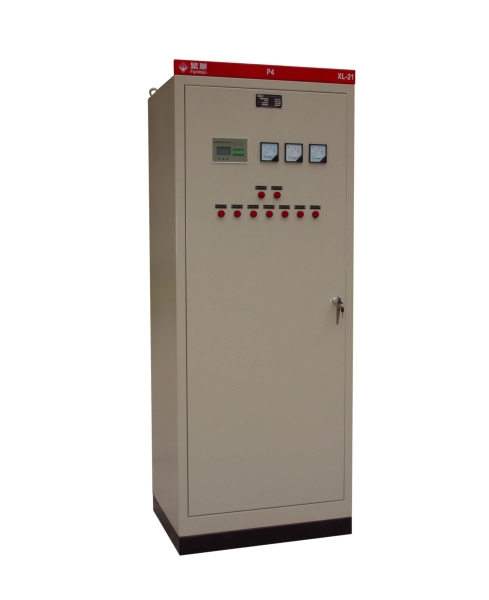

XL-21 系列动力控制柜
XL-21 Series Power Control-gear
性能及用途
(1) 箱体为组装式结构，安装孔间距为25MM.门板和顶板均为可拆式，底板开有出线孔，根据要求顶部可开进出线孔。安装板及侧梁可以调节、安装检修灵活、方便、结构紧凑、通用性好。
(2) 设备安装在前面板后，只能看到操作把手。电气设备受到保护，使用者非常安全。
(3) 该产品用途广泛，可按需要配装成不同电气发性能的控制系统。
(4) 产品适用于发电厂、变电站、工矿企业等动力控制或照明配电用。
(5) 外形尺寸（MM）
高：1200，1400，1600，1800，2000
深：300，400，500，600，800
宽：600，700，800，900，1000
Functions and Applications
(1) The structure of the case body is of fabricated type .the distance between the mounting holes is 25mm from each other .the front plate and the top plate are removable .there is an opening on the bottom place for outgoing feeder .an opening for incoming feeder and outgoing feeder can be made on the top plate if structure, it is equipped with adjustable side beams. Convenient for installation and overhaul. It is compact in structure, and has a good inter changeability.
(2) When the equipment is installed on the front panel, only the operating handle can be seen, the well-protected electrical equipment guarantees the personal safety of the operator.
(3) The product can be assembled into the control systems for different electrical functions.
(4) The product is applied to power control or lighting distribution in power plants, substations, and industrial enterprises.
(5) Overall Dimensions(mm)
Height: 1200,1400,1600,1800,2000
Depth: 300,400,500,600,800
Width: 600,700,800,900,1000
