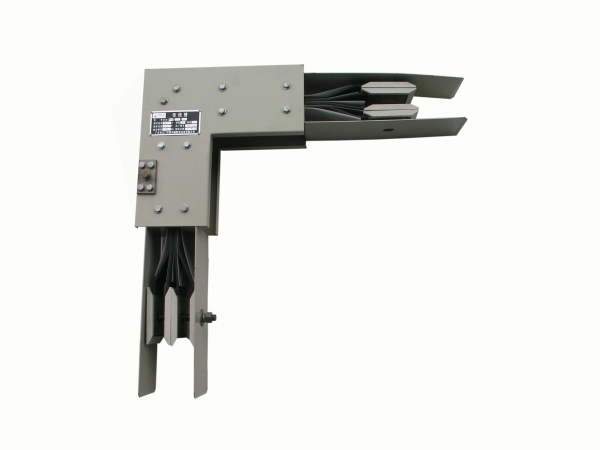

CCX6 Intensive Type Insulation Bus bar channel
性能与用途
(1)密集型绝缘母线槽由于使用优质铜导体,电流容量大,电压降小,采用高强性绝缘材料,具有优越的电气特性和机械强度。
(2)安全合理的设计、制造,使母线散热更快,输电性更好,确保整个母线干线的安全可靠运行。
(3)采用联接器安装,使安装更加简单快捷,检查维护方便。
(4)密集型绝缘母线槽使用安全、灵活、寿命长,整齐美观,广泛应用于高层及超高建筑。
Functions and Applications
(1) The intensive type insulation bus bar channel has excellent electrical performance and machinery strength, due the use of quality copper conductors, having current capacity and small voltage drop, and the use of high insulating materials.
(2) The safe and rational design enables the bus bar to dissipate the heat more quickly, and to reach a better. Power transmission, ensuring the save and reliable operation of the entire bus bar system.
(3) Using an adapter connector, the installation is simple and quick, the inspection and maintenance is convenient.
(4)The intensive type insulation bus bar is safe and flexible in operation, its long service life and nice-looking appearance enables it to be widely used in high and super hinge buildings.
主要技术参数
额定绝缘电压(AC):1000V
额定电压(V):380~660
额定电流(A):400~5000A
额定频率:50~60Hz
工频耐压:3750V/1min
常态下单元母线槽的绝缘电阻小于20M W
长期通过额定电流时,导电体温升不超过60°C
防护等级:IP40
Primary Technical Data
Rated insulation voltage (AC):1000V
Rated voltage (V):380~660
Rated current (A):400~5000A
Rated frequency:50~60HZ
Power-frequency withstand voltage: 3750V/1 min
Insulation resistance of unit’s bus bar channel in normal state not less than 20MW
If it is energized with rated current for a long period of time, the temperature rise of the conductor will not exceed 60°C.
Protection level: IP40
