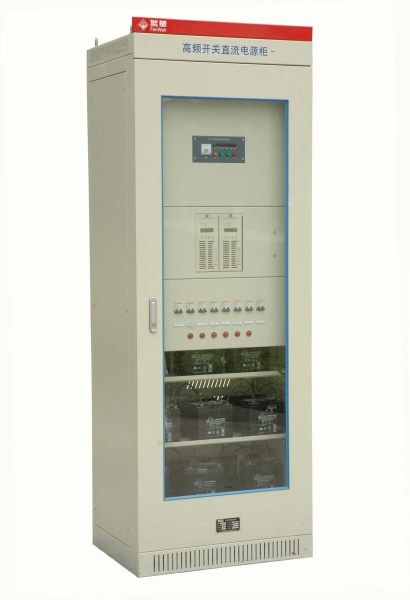

GZDW系列高频开关直流电源成套设备
GZDW Series High-frequency Switching Direct-current Switch gear Assemblies
性能与用途:
采用TEP-M系列全隔离式高频开关电源模块制成的GZDW系列微机自控高频开关直流电源成套设备是以TEP-1系列微机控制模块进行控制管理。其程序符合《GZDW型30-40系列电力系统用微机控制直流电源柜》技术要求。母线绝缘监测功能由微机完成;并没有与中央信号屏及远程遥测、遥控、遥信接口。各类参数均可以通过微机自动控制和面板设置。
该直流系统是作为电力系统专业直流电源的典型设计产品,具有自动化程度高、功率因素高、效率高、保护功能强等优点。是目前直流电源的主流产品。
Functions and Applications:
GZDW series micro-machine self-control high-frequency switching direct-current switch gear assemblies made of full separated high frequency switching mains modulators of TEP-M series is control and managed by micro machine control modular of TEP-1 series .its program conforms with the technical requirements of series 30-40 power system of GZDW type for micro machine -controlled DC mains cabinet. The monitoring of insulation of bus bar is carried out by micro machine. There are interfaces connecting the central signal panel and remote sensing, remote control and remote signaling. All data can be set through the automatic of micro machine and panel.
This DC system, as the typical design product of the professional DC mains of mains of power system, has the advantages of high level automation, high power factor, high efficiency, and well protection performance .At present; it is the leading product of DC mains.
主要技术参数
(1)输入参数:
交流输入电压:380VAC±15%
频率:45-55HZ
(2)输出参数:
额定容量:10~200AH
额定直流电压(V):220;110
浮充电压:198~298V
均充电压:230~315V
纹波系数£±0.1%
稳压精度:£±0.5%
稳流精度:£±0.5%
(3) 外形尺寸(宽*深*高)(MM)600(800)*600*2200
Primary Technical Data
(1) input data:
input AC voltage : 380VAC± 15%
frequency :45-55HZ
(2) Output data:
rated capacity :10~200AH
rated DC voltage (v): 220;110
float charging voltage: 198~298v
even charging voltage: 230~315v
ripple factor: £±0.1%
voltage-stabilizing accuracy : £±0.5%
current-stabilizing accuracy: £±0.5%
(3) Overall dimensions ( with, depth , height ) (mm): 600(800),600,2200
